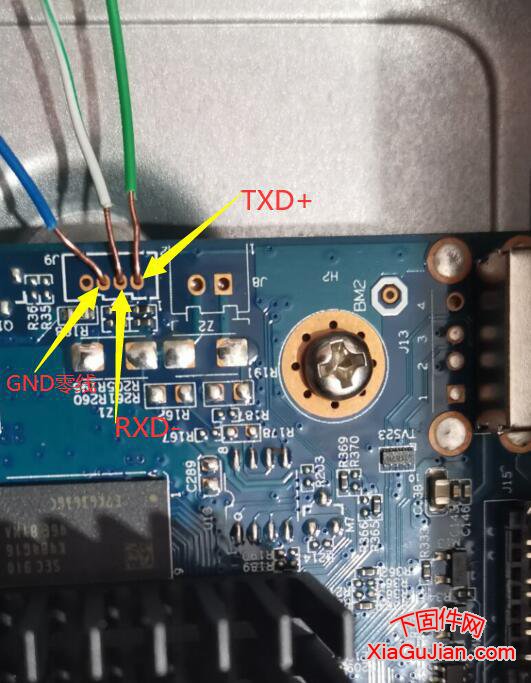

，大華DH-NVR2104HS-P-HDS3串口針角定義當使用串口刷機的時候就需要在大華硬盤錄像機機上接上串口線配合串口刷機工具來刷機
[19:38:31.012]收←◆
System startup
[19:38:31.383]收←◆boot mode= 1
U-Boot 2010.06-svn3225 (May 11 2018 - 10:43:08)
Check Flash Memory Controller v100 ... Found
SPI Nand(cs 0) ID: 0xc8 0x21 Name:"F50L1G41A"
Block:128KB Page:2KB Chip:128MB*1 OOB:64B ECC:4bit/512
ECC provided by Flash Memory Controller
SPI Nand total size: 128MB
[19:38:31.480]收←◆In: serial
Out: serial
Err: serial
[19:38:31.561]收←◆
Boot Env on NAND
Env Offset: 0x00300000
Env Size: 0x00020000
Env Range: 0x00020000
flash update type 0
[19:38:32.662]收←◆PRODUCT:1U
[19:38:33.201]收←◆stMaxRect.u32Width:1280, stMaxRect.u32Height:720.
HDMI_INFO:Hdmi_PixelFreqSearch[127] ,u32Fmt8.
Hit any key to stop autoboot: 3
[19:38:34.222]收←◆ 2
[19:38:35.221]收←◆ 1
[19:38:36.219]收←◆ 0
[19:38:41.635]收←◆ETH0: PHY(phyaddr=0, rmii) not link!
higmac init fail!
[19:38:46.982]收←◆ETH0: PHY(phyaddr=0, rmii) not link!
higmac init fail!
NAND read: device 0 offset 0x500000, size 0x400000
[19:38:47.426]收←◆ 4194304 bytes read: OK
## Booting kernel from Legacy Image at 82000000 ...
Image Name: Linux-3.18.20
Image Type: ARM Linux Kernel Image (uncompressed)
Data Size: 3508107 Bytes = 3.3 MiB
Load Address: 80008000
Entry Point: 80008000
Loading Kernel Image ...
[19:38:48.233]收←◆OK
OK
[19:38:48.267]收←◆
Starting kernel ...
